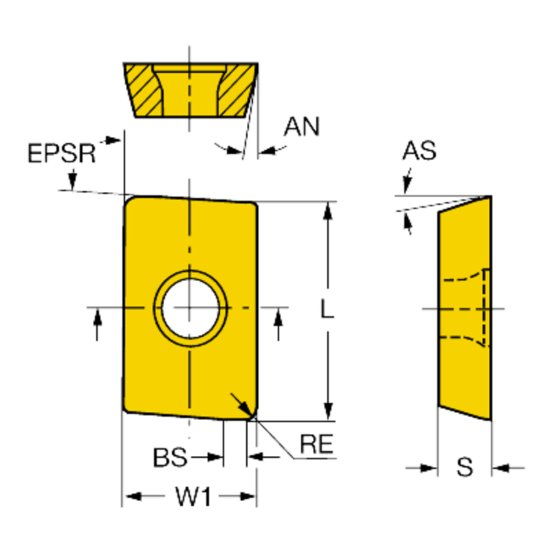

Picture of Sandvik R215.44-090208M-WH 4030 U-Max Insert; Face and Plunge and Longedge Milling

Sandvik R215.44-090208M-WH 4030 U-Max Insert; Face and Plunge and Longedge Milling

Part Number: SAN5742701 ISO: R215.44-090208M-WH 4030 ANSI:R215.44-090208M-WH 4030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1191570
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 5742701 Rectagonal Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN DUCTILE IRON, STEELS
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <40HRC Steel, Ductile Iron
Coating TiCN + Al2O3 + TiN
Insert/Tool INSERT
Insert Application Roughing
Corner Radius 0.0320 0.81MM
Insert Style R215
Insert Shape/Cutter Pocket Shape Rectagonal
Grade 4030
Insert Type Positive
Insert Fits Parallelogram
Hand Neutral
Depth Of Cut Max 0.3540
