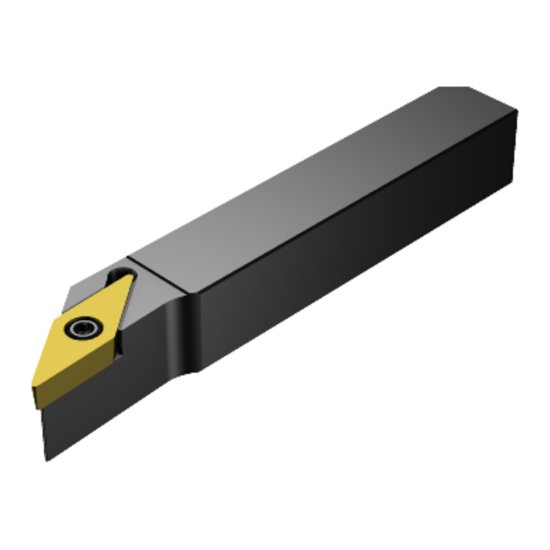

Picture of Sandvik QS-SVJBR 103X, CoroTurn 107 QS Short Holder for QS Holding System, Right Hand, 5/8 x 5/8" Shank Stick Tool

Sandvik QS-SVJBR 103X, CoroTurn 107 QS Short Holder for QS Holding System, Right Hand, 5/8 x 5/8" Shank Stick Tool

Part Number: SAN5738216 ISO: QS-SVJBR 103X ANSI:QS-SVJBR 103X
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1055243
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

SANDVIK 5738216 35.0 ° Stick Tool0.6250 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Right Hand
Inter/Extern External
Coolant Type External
Dimensions & Sizing
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 16 "33"
Tool Over Hang 1.1810
Tool Width 0.6250
Geometry & Angles
Lead Angle 90°
Lead Angle & Clearance Angle Combined Swiss, 90° Lead Angle 53.0° Clearance Angle
Clearance Angle 53.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
CNC Connection Swiss
