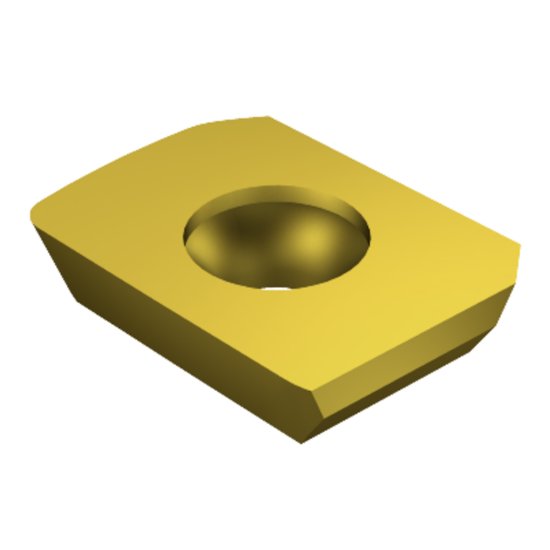

SANDVIK LEHW 18 04 16R-2 1025 Long Edge Cutter Insert; Face and Plunge Milling

ANSI: LEHW 18 04 16R-2 1025

ISO: LEHW 18 04 16R-2 1025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5733645
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

LEHW 18 04 16R-2 1025 Sandvik T-Max®, Carbide Long Edge Insert for Milling, TiCN + TiN Coating

Grade and Coating Description

PVD TiAlN+TiN FOR GENERAL PURPOSE MACHINGING, GOOD FOR ALL MATERIALS

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#3, Material#20, Material#8, Material#15, Material#10
Shipping State Illinois
Sold by Pieces 10
Coating TiAIN + TiN
Package Size 10
Insert/Tool Insert
Additional Key Information 1 Insert
Additional Key Information 2 On Edge
Application Milling Insert
Insert Application Finishing
Insert Type Positive
Grade 1025
Uncategorized
Made In USA No
Dimensional Specifications
Depth Of Cut Max 1.0000
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Corner Radius 0.0620 1.57MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
Hand R/L Right
Insert Style LE
