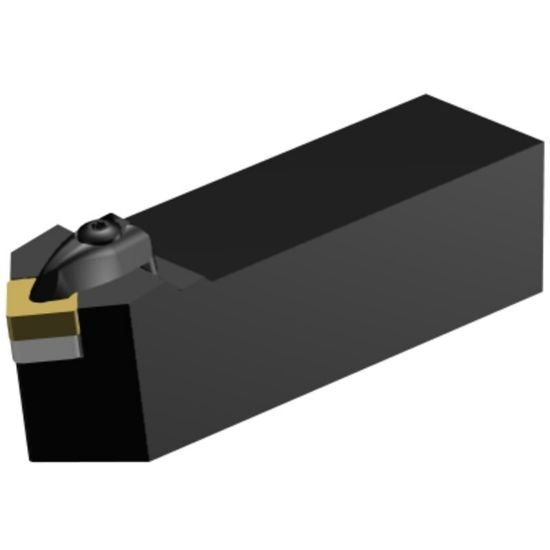

Picture of Sandvik DSDNN 24 5D, T-Max P Shank Tool for Turning, Neutral Hand, 1-1/2 x 1-1/2" Shank Stick Tool

Sandvik DSDNN 24 5D, T-Max P Shank Tool for Turning, Neutral Hand, 1-1/2 x 1-1/2" Shank Stick Tool

Part Number: SAN5733074 ISO: DSDNN 24 5D ANSI:DSDNN 24 5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1055888
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

SANDVIK 5733074 Square Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Hand Neutral
Inter/Extern External
Coolant Type External
Dimensions & Sizing
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 16 "54"
Tool Over Hang 1.7600
Tool Width 1.5000
Geometry & Angles
Lead Angle 45°
Lead Angle & Clearance Angle Combined 45° Lead Angle 40.0° Clearance Angle
Clearance Angle 40.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Square
