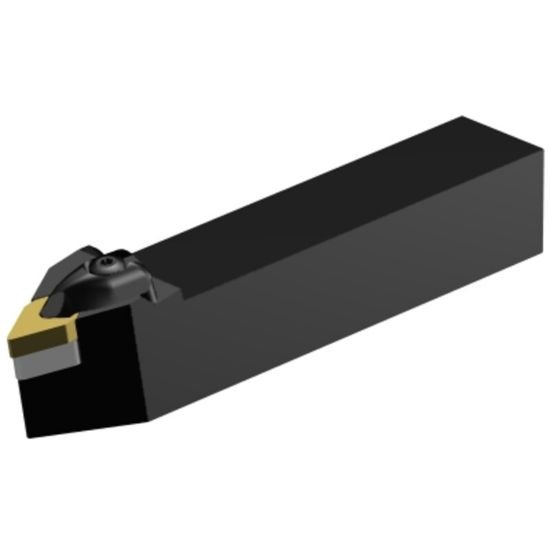

Picture of Sandvik DDPNN 16 4D, T-Max P Shank Tool for Turning, Neutral Hand, 1 x 1" Shank Stick Tool

Sandvik DDPNN 16 4D, T-Max P Shank Tool for Turning, Neutral Hand, 1 x 1" Shank Stick Tool

Part Number: SAN5731242 ISO: DDPNN 16 4D ANSI:DDPNN 16 4D
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1055699

Description

SANDVIK 5731242 55.0 ° Stick Tool 1.0000 Negative
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Neutral
Inter/Extern External
Coolant Type External
Dimensions & Sizing
Shank/Pilot Dia 1.0000 25.40MM
Tool Over Hang 1.6100
Tool Width 1.0000
Insert Size Ic 15 "43"
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 57.0° Clearance Angle
Clearance Angle 57.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
