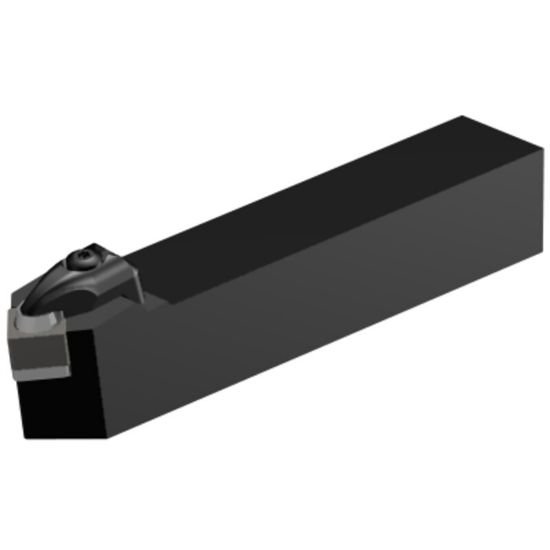

Picture of Sandvik CSDNN 164D-4, T-Max Shank Tool for Turning, Neutral Hand, 1 x 1" Shank Stick Tool

Sandvik CSDNN 164D-4, T-Max Shank Tool for Turning, Neutral Hand, 1 x 1" Shank Stick Tool

Part Number: SAN5725970 ISO: CSDNN 164D-4 ANSI:CSDNN 164D-4
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1055736
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

SANDVIK 5725970 Square Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Hand Neutral
Inter/Extern External
Coolant Type External
Dimensions & Sizing
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12 "45"
Tool Over Hang 1.4500
Tool Width 1.0000
Geometry & Angles
Lead Angle 45°
Lead Angle & Clearance Angle Combined 45° Lead Angle 40.0° Clearance Angle
Clearance Angle 40.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Square
