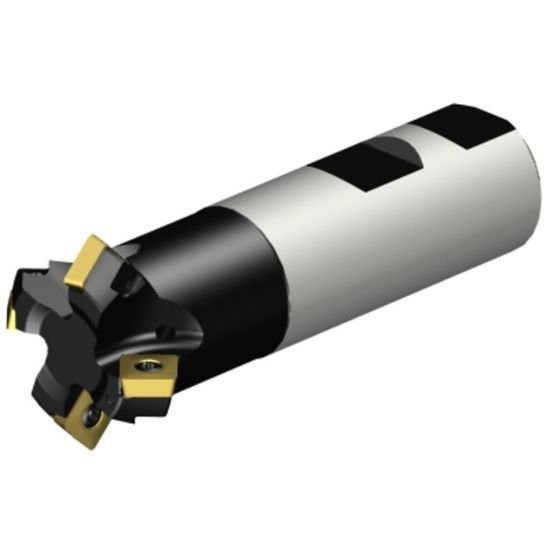

Picture of Sandvik A495-026M25-4509H, CoroMill 495 Chamfer Milling Cutter, 1.020" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

Sandvik A495-026M25-4509H, CoroMill 495 Chamfer Milling Cutter, 1.020" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

Part Number: SAN6536282 ISO: A495-026M25-4509H ANSI:A495-026M25-4509H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1014361
Vendor: Sussex Tool and Supply
$0.00
SANDVIK 6536282 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 1.0000 Positive 1.0200 25.91MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 2.6090 66.27MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0200 25.91MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style 495
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 9
Hand Right Hand
Coolant Type Internal
Depth Of Cut Max 0.2150
Cutting Edge Angle 45.0°
