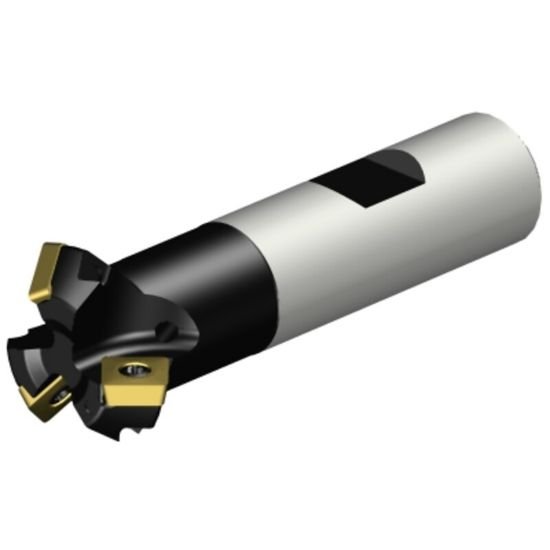

Picture of Sandvik A495-020M19-4509M, CoroMill 495 Chamfer Milling Cutter, 0.770" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

Sandvik A495-020M19-4509M, CoroMill 495 Chamfer Milling Cutter, 0.770" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

Part Number: SAN6536281 ISO: A495-020M19-4509M ANSI:A495-020M19-4509M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1014364
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

SANDVIK 6536281 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 0.7500 Positive 0.7700 19.56MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style 495
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Coolant Type Internal
Dimensions & Sizing
Overall Length 2.3340 59.28MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7700 19.56MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Depth Of Cut Max 0.3040
Materials & Finish
Tool Material Steel
