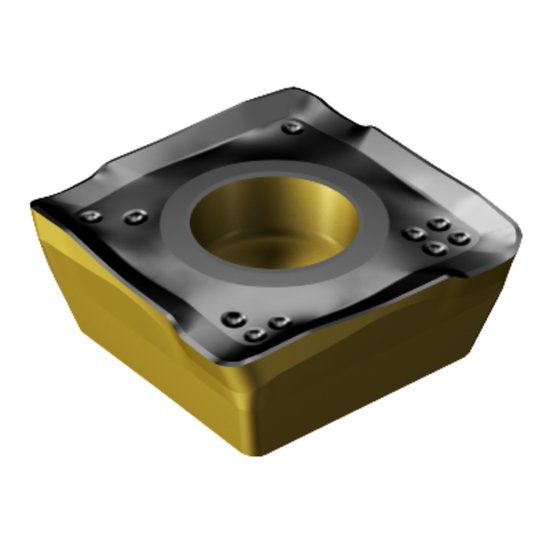

Picture of Sandvik 490R-140420M-Powder Metal 4330 CoroMill 490 Insert; 90 degree shoulder Milling

Sandvik 490R-140420M-Powder Metal 4330 CoroMill 490 Insert; 90 degree shoulder Milling

Part Number: SAN7564358 ISO: 490R-140420M-PM 4330 ANSI:490R-140420M-PM 4330
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1191943
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

SANDVIK 7564358 Square Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON, STEELS.USED FOR GENERAL PURPOSE MACHINNG VERY TOUGH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Medium
Insert Style 490
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Insert Size Ic 14
Geometry & Angles
Corner Radius 0.0790 2.01MM
Performance & Capacity
Cut Rating <40HRC Steel, Ductile Iron
Depth Of Cut Max 0.3937
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade 4330
Compatibility & Fit
Insert Fits Square
