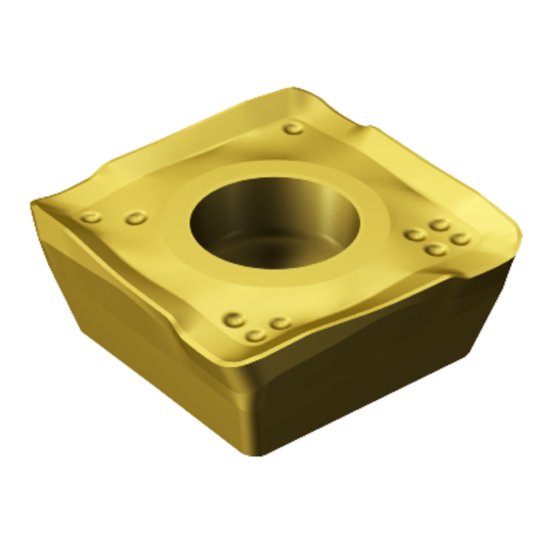

Picture of Sandvik 490R-08T312E-mm 2040 CoroMill 490 Insert; 90 degree shoulder Milling

Sandvik 490R-08T312E-mm 2040 CoroMill 490 Insert; 90 degree shoulder Milling

Part Number: SAN5762172 ISO: 490R-08T312E-MM 2040 ANSI:490R-08T312E-MM 2040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1190875
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SANDVIK 5762172 Square Insert Positive TiCrN + Al2O3 + TiN CVD TiCrN+Al2O3+TiN Tough, medium-thick coated CVD grade designed for tough and demanding, medium to rough milling applications with poor stability in dry conditions. High feed rates, large diameters and radial engagements.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, <40HRC Steel
Coating TiCrN + Al2O3 + TiN
Insert/Tool INSERT
Cut Type Medium
Corner Radius 0.0470 1.19MM
Insert Style 490
Insert Shape/Cutter Pocket Shape Square
Grade 2040
Insert Type Positive
Insert Size Ic 8
Insert Fits Square
Hand Right Hand
Depth Of Cut Max 0.2165
