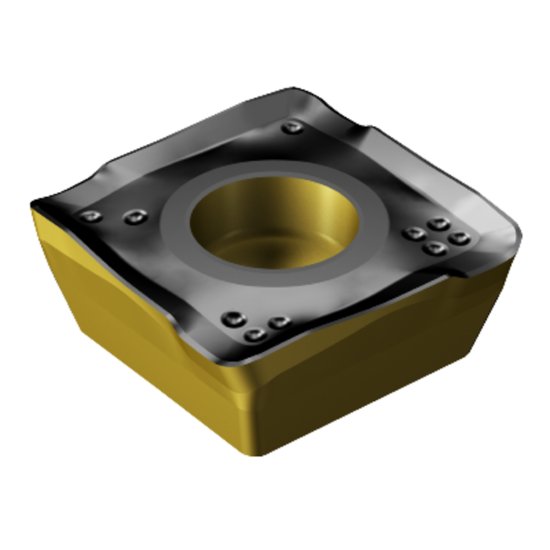

Picture of Sandvik 490R-08T308M-Powder Metal 4220 CoroMill 490 Insert; 90 degree shoulder Milling

Sandvik 490R-08T308M-Powder Metal 4220 CoroMill 490 Insert; 90 degree shoulder Milling

Part Number: SAN5762164 ISO: 490R-08T308M-PM 4220 ANSI:490R-08T308M-PM 4220

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1190759
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SANDVIK 5762164 Square Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON, STEELS.USED GENERAL PURPOSE
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <40HRC Steel, Ductile Iron
Coating TiCN + Al2O3 + TiN
Insert/Tool INSERT
Cut Type Medium
Corner Radius 0.0320 0.81MM
Insert Style 490
Insert Shape/Cutter Pocket Shape Square
Grade 4220
Insert Type Positive
Insert Size Ic 8
Insert Fits Square
Hand Right Hand
Depth Of Cut Max 0.2165
