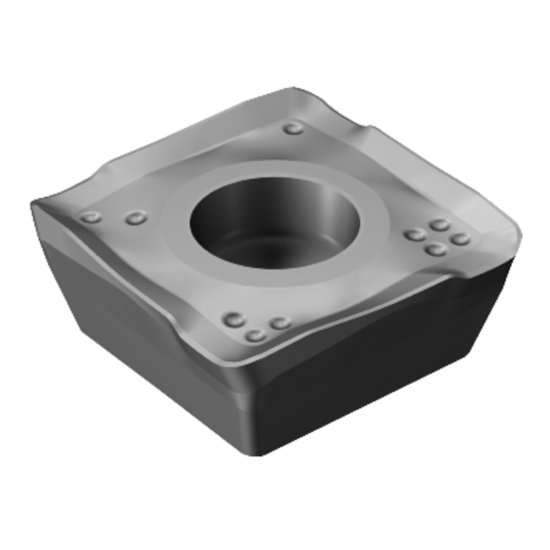

Picture of Sandvik 490R-08T308M-PL 530 CoroMill 490 Insert; 90 degree shoulder Milling

Sandvik 490R-08T308M-PL 530 CoroMill 490 Insert; 90 degree shoulder Milling

Part Number: SAN5762158

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1190907
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.
Products specifications
Attribute name Attribute value
Hand Right Hand
Insert Application Finishing
Cutter Type Insert
Depth Of Cut Max 0.2165
Insert Size (IC) 8
Insert Type Positive
Cutting Edge Definition Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling., and therefore, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness
Insert Style 490
Grade 530
Insert Or Tool INSERT
Insert Shape Or Cutter Pocket Shape Square
Shipping State ILLINOIS
Family Group 490R
Cutting Edge Material Cermet
Insert Fits Square
Corner Radius 0.0320 0.81MM
Made In USA No
