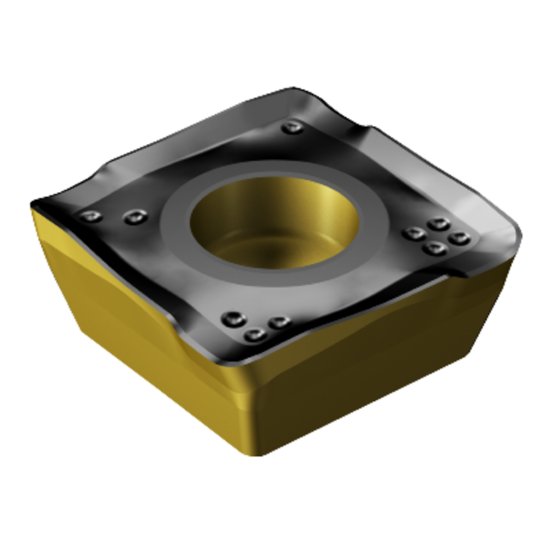

Picture of Sandvik 490R-08T308M-KM 3330 CoroMill 490 Insert; 90 degree shoulder Milling

Sandvik 490R-08T308M-KM 3330 CoroMill 490 Insert; 90 degree shoulder Milling

Part Number: SAN6428145 ISO: 490R-08T308M-KM 3330 ANSI:490R-08T308M-KM 3330

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1191772
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SANDVIK 6428145 Square Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON TOUGH, GOOD FOR LOW RIGIDITY
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Gray Iron, Ductile Iron
Coating TiCN + Al2O3 + TiN
Insert/Tool INSERT
Cut Type Medium
Corner Radius 0.0320 0.81MM
Insert Style 490
Insert Shape/Cutter Pocket Shape Square
Grade 3330
Insert Type Positive
Insert Size Ic 8
Insert Fits Square
Hand Neutral
Depth Of Cut Max 0.2165
