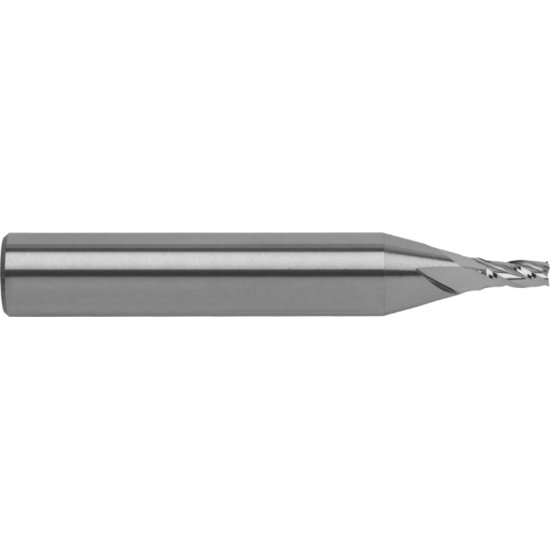

Picture of RobbJack T12-403-07-C Dia 7/32 SH 0.3750 LOC 0.3125 OAL2.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp

RobbJack T12-403-07-C Dia 7/32 SH 0.3750 LOC 0.3125 OAL2.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp

Part Number: ROBT12-403-07-C 0.219 x 0.375 x 0.313 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: 1269012
Vendor: Sussex Tool and Supply
$0.00
ROBBJACK Standard Helix End Mill Carbide TiCN Square Sharp Standard Flute Flutes 4 Single End ROBBJACK Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.2188 5.56MM - 7/32
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3125 7.94MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
