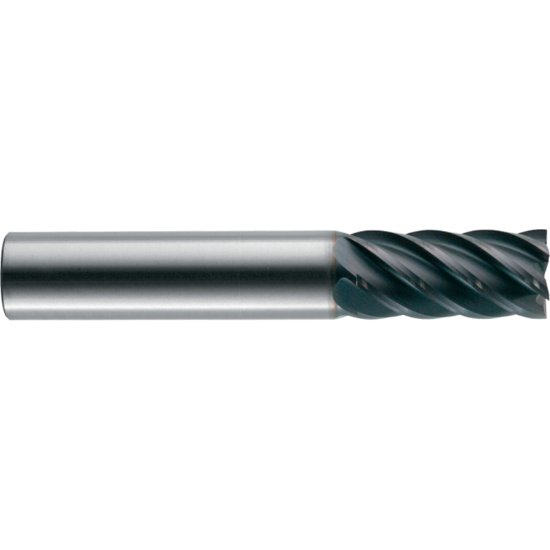

Picture of RobbJack ST-646-32-C Dia 1 SH 1.00 LOC 2.50 OAL5.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0120 0.30mm

RobbJack ST-646-32-C Dia 1 SH 1.00 LOC 2.50 OAL5.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Corner Radius0.0120 0.30mm

Part Number: ROBST-646-32-C 1.000 x 1.000 x 2.500 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: 1268688
Vendor: Sussex Tool and Supply
$0.00
ROBBJACK Standard Helix End Mill Carbide TiCN Corner Radius 0.0120 0.30MM Standard Flute Flutes 6 Single End ROBBJACK Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 6
Tool Dia 1.0000 25.40MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 2.5000 63.50MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0120 0.30MM
Inch/Metric Inch
Helix Angle 40
Center Cutting Center Cutting
