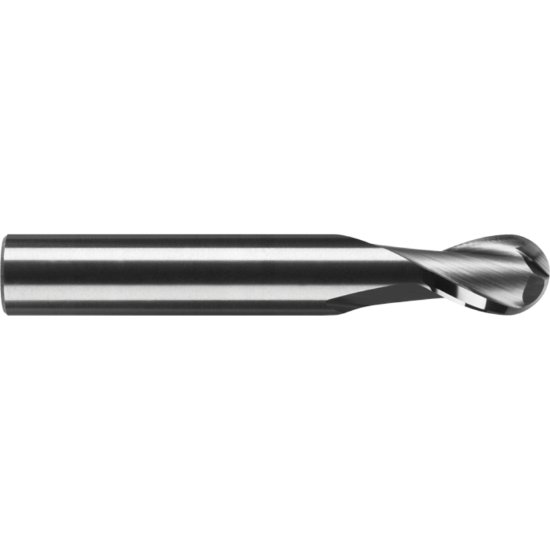

Picture of RobbJack SB-201-24-C Dia 3/4 SH 0.7500 LOC 1.00 OAL4.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall

RobbJack SB-201-24-C Dia 3/4 SH 0.7500 LOC 1.00 OAL4.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall

Part Number: ROBSB-201-24-C 0.750 x 0.750 x 1.000 x 4.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$271.69
SKU: 1267659

Description

ROBBJACK Standard Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 2 Single End ROBBJACK Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
