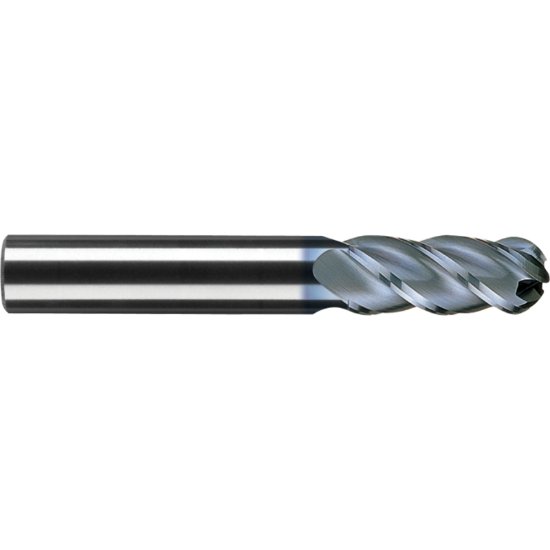

Picture of RobbJack MB-440-05-C Dia 5mm SH 0.1969 LOC 0.5510 OAL1.9685 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall

RobbJack MB-440-05-C Dia 5mm SH 0.1969 LOC 0.5510 OAL1.9685 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall

Part Number: ROBMB-440-05-C 0.197 x 0.197 x 0.551 x 1.969

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: 1265690
Vendor: Sussex Tool and Supply
$0.00
ROBBJACK Standard Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 4 Single End ROBBJACK Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.1969 5.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1969 5.00MM
Flutes/Inserts 4
Tool Dia 0.1969 5.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5510 14.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 40
Center Cutting Center Cutting
