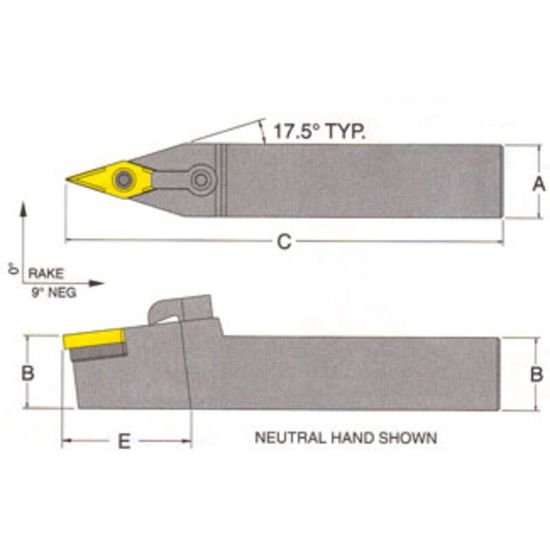

Picture of RMC MVVNN-16-3DTurning Stick Tool 35.0° Insert Square 1.000 6.000 Oal Left Hand

RMC MVVNN-16-3DTurning Stick Tool 35.0° Insert Square 1.000 6.000 Oal Left Hand

Part Number: RMCMVVNN-16-3D ISO: MVVNN-16-3D ANSI:MVVNN-16-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054977
Vendor: Sussex Tool and Supply
$183.08

Description

RMC MVVNN-16-3D 35.0 ° Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA YES
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp/Wedge CL-30
Seat/Nest IVSN-322
Seat Screw XNS-58
Lock Pin NL-34L
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Tool Width 1.0000
Geometry & Angles
Lead Angle 72.5°
Lead Angle & Clearance Angle Combined 72.5° Lead Angle 70.0° Clearance Angle
Clearance Angle 70.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
