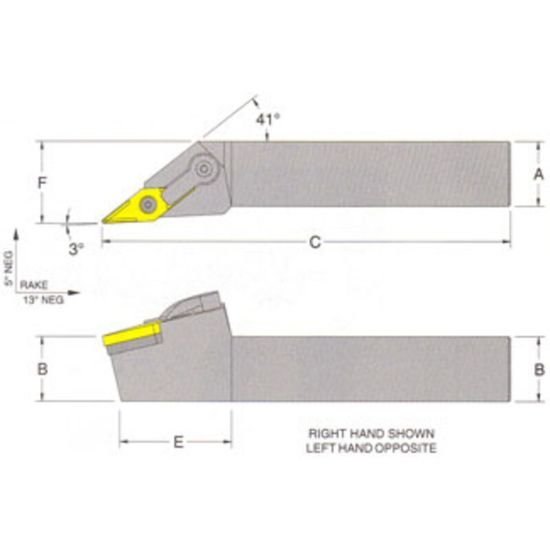

Picture of RMC MVJNL-85-4DTurning Stick Tool 35.0° Insert Square 1.250 6.000 Oal Left Hand

RMC MVJNL-85-4DTurning Stick Tool 35.0° Insert Square 1.250 6.000 Oal Left Hand

Part Number: RMCMVJNL-85-4D ISO: MVJNL-85-4D ANSI:MVJNL-85-4D
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1054974

Description

RMC MVJNL-85-4D 35.0 ° Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA YES
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp/Wedge CL-30
Seat/Nest IVSN-432
Seat Screw XNS-510
Lock Pin NL-46
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 22 "43"
Tool Width 1.2500
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
