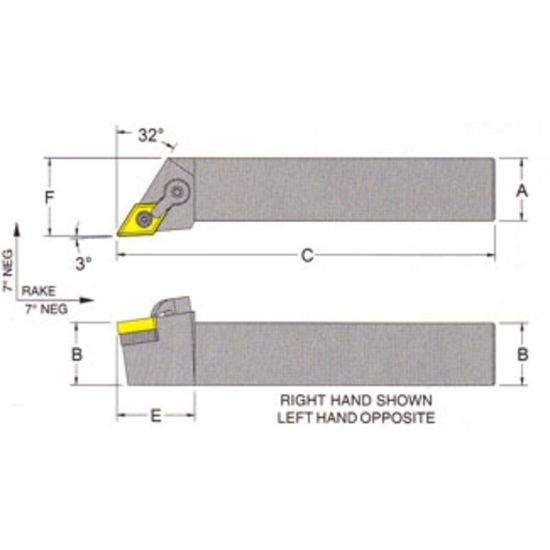

Picture of RMC MDJNR-20-4DTurning Stick Tool 55.0° Insert Square 1.250 1.500 Oal Right Hand

RMC MDJNR-20-4DTurning Stick Tool 55.0° Insert Square 1.250 1.500 Oal Right Hand

Part Number: RMCMDJNR-20-4D ISO: MDJNR-20-4D ANSI:MDJNR-20-4D
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$186.93
SKU: 1055044

Description

RMC MDJNR-20-4D 55.0 ° Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA YES
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Right Hand
Inter/Extern External
Clamp/Wedge CL-20
Seat/Nest IDSN-433
Seat Screw XNS-48
Lock Pin NL-46
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12 "43"
Tool Width 1.2500
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
