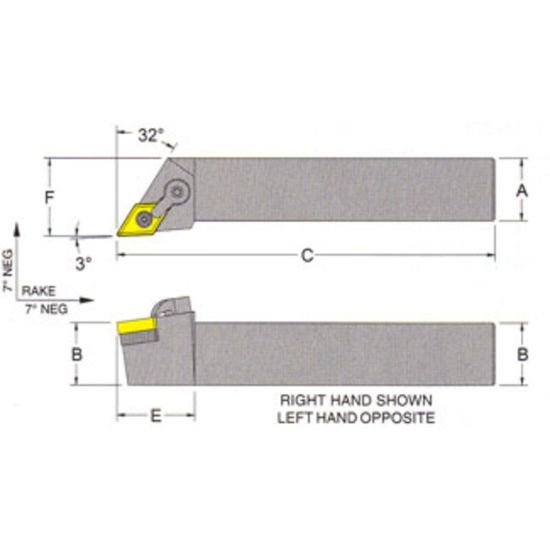

Picture of RMC MDJNL-24-5DTurning Stick Tool 55.0° Insert Square 1.500 1.440 Oal Left Hand

RMC MDJNL-24-5DTurning Stick Tool 55.0° Insert Square 1.500 1.440 Oal Left Hand

Part Number: RMCMDJNL-24-5D ISO: MDJNL-24-5D ANSI:MDJNL-24-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054848
Vendor: Sussex Tool and Supply
$186.93

Description

RMC MDJNL-24-5D 55.0 ° Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA YES
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp/Wedge CL-12
Seat/Nest IDSN-533
Seat Screw XNS-510
Lock Pin NL-68
Dimensions & Sizing
Overall Length 1.4400 36.58MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 19 "54"
Tool Width 1.5000
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
