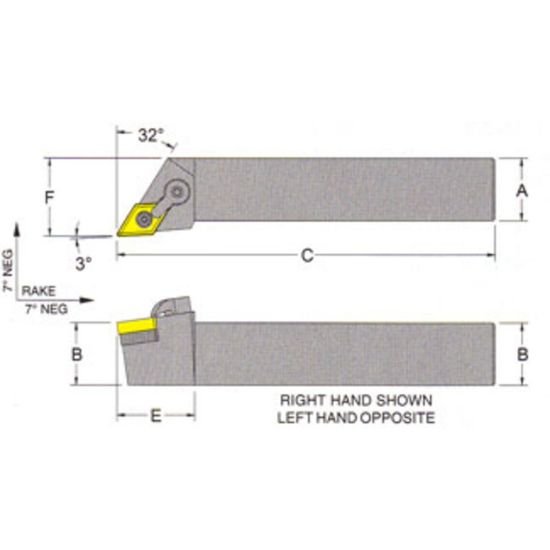

Picture of RMC MDJNL-16-5DTurning Stick Tool 55.0° Insert Square 1.000 1.440 Oal Left Hand

RMC MDJNL-16-5DTurning Stick Tool 55.0° Insert Square 1.000 1.440 Oal Left Hand

Part Number: RMCMDJNL-16-5D ISO: MDJNL-16-5D ANSI:MDJNL-16-5D
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$175.23
SKU: 1054844

Description

RMC MDJNL-16-5D 55.0 ° Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA YES
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp/Wedge CL-12
Seat/Nest IDSN-533
Seat Screw XNS-510
Lock Pin NL-58
Dimensions & Sizing
Overall Length 1.4400 36.58MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 19 "54"
Tool Width 1.0000
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
