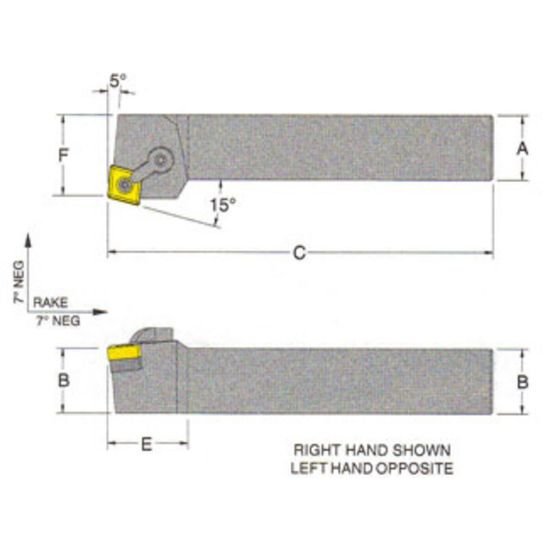

Picture of RMC MCRNL-16-4CTurning Stick Tool 80.0° Insert Square 1.000 5.000 Oal Left Hand

RMC MCRNL-16-4CTurning Stick Tool 80.0° Insert Square 1.000 5.000 Oal Left Hand

Part Number: RMCMCRNL-16-4C ISO: MCRNL-16-4C ANSI:MCRNL-16-4C
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1054823

Description

RMC MCRNL-16-4C 80.0 ° Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA YES
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp/Wedge CL-9
Seat/Nest ICSN-433
Seat Screw XNS-58
Lock Pin NL-46
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12 "43"
Tool Width 1.0000
Geometry & Angles
Lead Angle 75°
Lead Angle & Clearance Angle Combined 75° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 80.0°
