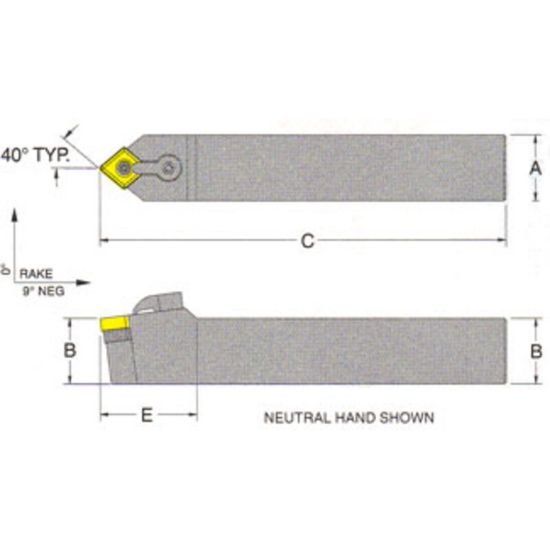

Picture of RMC MCMNN-16-5DTurning Stick Tool 80.0° Insert Square 1.000 5.000 Oal Left Hand

RMC MCMNN-16-5DTurning Stick Tool 80.0° Insert Square 1.000 5.000 Oal Left Hand

Part Number: RMCMCMNN-16-5D ISO: MCMNN-16-5D ANSI:MCMNN-16-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054816
Vendor: Sussex Tool and Supply
$128.52

Description

RMC MCMNN-16-5D 80.0 ° Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA YES
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp/Wedge CL-12
Seat/Nest ICSN-533
Seat Screw XNS-510
Lock Pin NL-58
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "54"
Tool Width 1.0000
Geometry & Angles
Lead Angle 50°
Lead Angle & Clearance Angle Combined 50° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 80.0°
