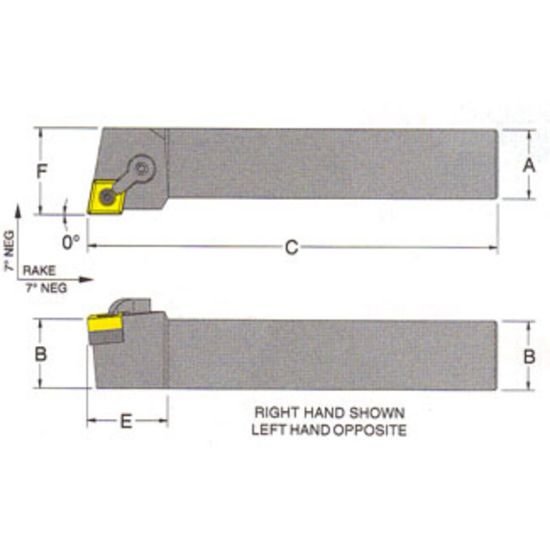

Picture of RMC MCGNL-24-4DTurning Stick Tool 80.0° Insert Square 1.500 6.000 Oal Left Hand

RMC MCGNL-24-4DTurning Stick Tool 80.0° Insert Square 1.500 6.000 Oal Left Hand

Part Number: RMCMCGNL-24-4D ISO: MCGNL-24-4D ANSI:MCGNL-24-4D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054788
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

RMC MCGNL-24-4D 80.0 ° Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA YES
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp/Wedge CL-20
Seat/Nest ICSN-433
Seat Screw XNS-48
Lock Pin NL-46
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12 "43"
Tool Width 1.5000
Geometry & Angles
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 80.0°
