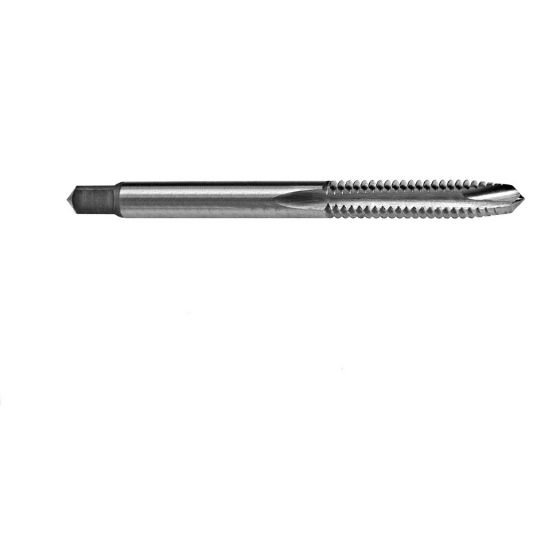

Picture of Reiff & Nestor 16013 No.12-28.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Reiff & Nestor 16013 No.12-28.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REI16013

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: 1133737
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.1787 4.54MM - 0.1882 4.78MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.2200 5.59MM
Thread Limit H1/GH1
Cutter Type Taping
Tap Square 0.1650
Length Type STANDARD
Performance Rating General Performance
Tap Style Cut Spiral Point
Overall Length 2.3750 60.33MM
Machine Side (Toolpost) TAP0.165x0.220
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 2
Shipping State PENNSYLVANIA
Cutting Edge Material HSS
Tool Material Steel
Coolant Thru Non Coolant
Tap Type Bottoming
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA YES
Thread Size No.12
Thread Pitch 28.00TPI
Tap Chamfer 1.0P-2.0P
