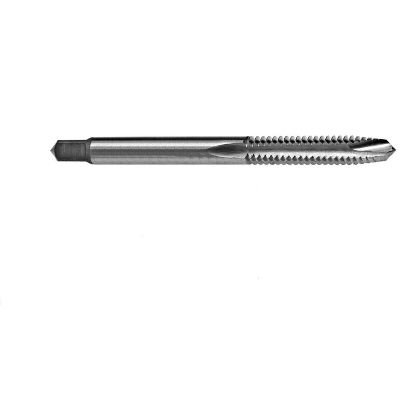

Picture of Reiff & Nestor 15123 No.5-40.00Tpi Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Reiff & Nestor 15123 No.5-40.00Tpi Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REI15123

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: 1003132
Vendor: Sussex Tool and Supply
$0.00

REIFF & NESTOR tap with cut spiral point bottoming 1.0P to 2.0P HSS uncoated right flute NC UNC. Tap collet connection made in usa. Tool material steel. Machine side TAP0.110x0.140.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NC/UNC
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.110x0.140

Grades & Coatings

  • Alternate Description: REIFF & NESTOR No.5x40.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated H3/GH3 NC/UNC

Other Details

  • Brand: REIFF & NESTOR
  • Shipping State: PENNSYLVANIA
  • Made In Usa: Yes
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Cut spiral point bottoming threads. Used for NC/UNC thread types. Operates with tap collet connection.

Composition

HSS Uncoated Steel. 1.0P-2.0P point size. Right flute direction.

Typical Uses

Bottoming in UNC/NC threads. Installed in tap collet TAP0.110x0.140. Used in machine toolpost.

Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Cutter Type Taping
Made In USA YES
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSS
Tool Material Steel
Machine Side (Toolpost) TAP0.110x0.140
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 1.9375 49.21MM
Shank Or Pilot Diameter 0.1410 3.58MM
Coolant Thru Non Coolant
Flutes Or Inserts 2
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 40.00TPI
Thread Type NC/UNC
Flute Direction Right
Thread Size No.5
Tap Style Cut Spiral Point
Tap Type Bottoming
Thread Limit H3/GH3
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Tap Square 0.1100
Tap Chamfer 1.0P-2.0P
