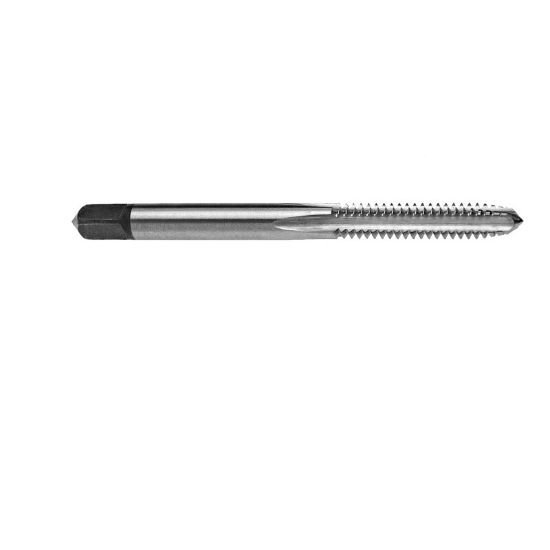

Picture of Reiff & Nestor 11621 No.4-48.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Reiff & Nestor 11621 No.4-48.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: REI11621

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: 1197447
Vendor: Sussex Tool and Supply
$0.00
REIFF & NESTOR No.4x48.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 1.8750 47.63MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 48.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.4
Thread Limit H3/GH3
Tap Style Hand Tap
Tap Type Taper
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tap Square 0.1100
Tap Chamfer 7.0P-10.0P
