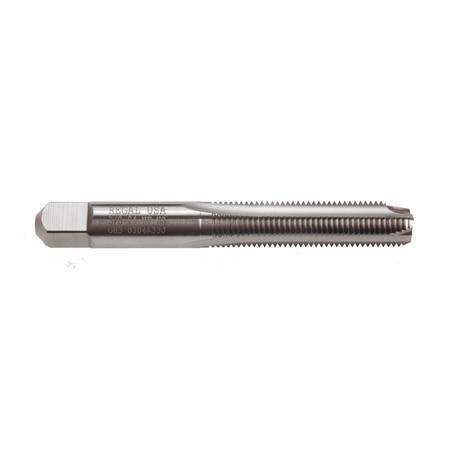

Picture of Regal 099415AS 3/8-24.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Regal 099415AS 3/8-24.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG099415AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175512
Vendor: Sussex Tool and Supply
$0.00
REGAL 3/8"x24.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Tap Chamfer 1.0P-2.0P
