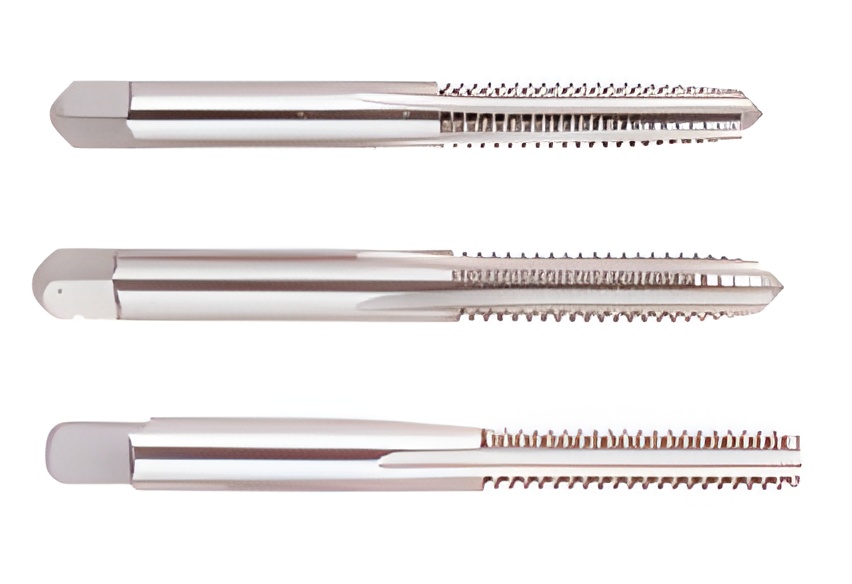

Picture of Regal 027700AS M1.6-0.35mm Hand Tap Taper 7.0P-10.0P HSS Uncoated

Regal 027700AS M1.6-0.35mm Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: REG027700AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176361
Vendor: Sussex Tool and Supply
$0.00
REGAL M1.6x0.35MM Hand Tap Taper 7.0P-10.0P HSS Uncoated D3 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 1.6250 41.28MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.35MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M1.6
Thread Limit D3
Tap Style Hand Tap
Tap Type Taper
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0496 1.26MM - 0.0524 1.33MM
Tap Square 0.1100
Tap Chamfer 7.0P-10.0P
