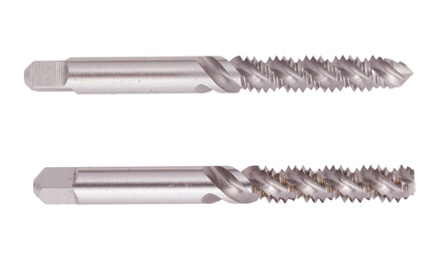

Picture of Regal 027650AS M3-0.50mm Cut Spiral Flute Plug 4.0P-5.0P HSS Uncoated

Regal 027650AS M3-0.50mm Cut Spiral Flute Plug 4.0P-5.0P HSS Uncoated

Part Number: REG027650AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176669
Vendor: Sussex Tool and Supply
$0.00
REGAL M3x0.50MM Cut Spiral Flute Plug 4.0P-5.0P HSS Uncoated D3 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 1.9370 49.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M3
Thread Limit D3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Square 0.1100
Tap Chamfer 4.0P-5.0P
