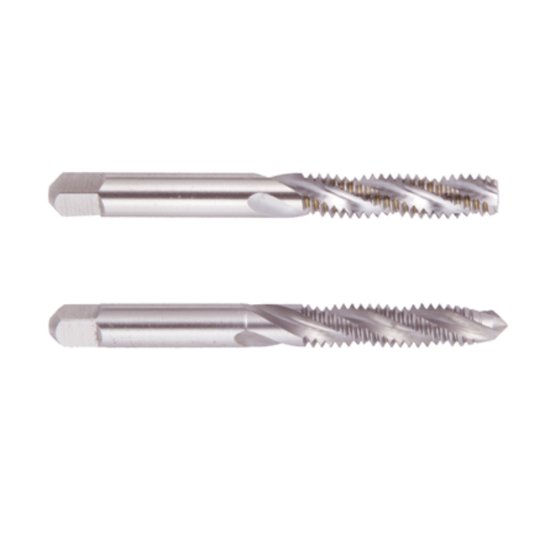

Picture of Regal 027625AS M8-1.00mm Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Regal 027625AS M8-1.00mm Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG027625AS
Looking for alternatives…
Find a drill for this tap M8 × 1.00MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176660
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

REGAL M8x1.00MM Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated D5 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 2.7180 69.04MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2360
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
