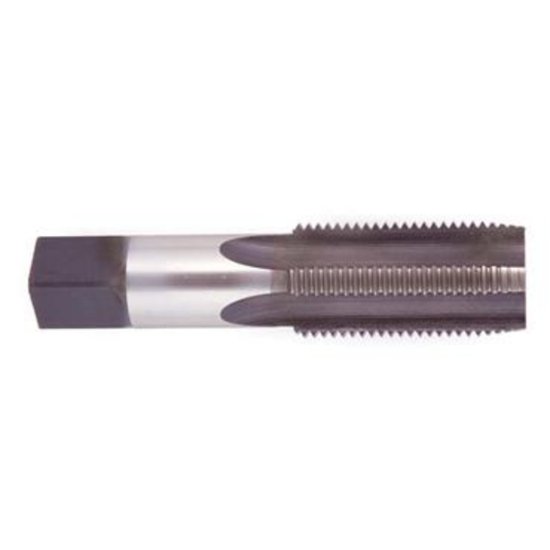

Picture of Regal 017888AS 2-5/8-8.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Regal 017888AS 2-5/8-8.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG017888AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175794
Vendor: Sussex Tool and Supply
$659.60
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Taping
Made In USA YES
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSS
Tool Material Steel
Machine Side (Toolpost) TAP1.575x2.225
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 8.7500 222.25MM
Shank Or Pilot Diameter 2.2250 56.52MM
Coolant Thru Non Coolant
Flutes Or Inserts 6
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 8.00TPI
Thread Type 8-Pitch
Flute Direction Right
Thread Size 2-5/8"
Tap Style Hand Tap
Tap Type Bottoming
Thread Limit H8/GH8
Dimension Standard ANSI/ANSI
Tap Drill Range 2.5472 64.70MM
Tap Square 1.5750
Tap Chamfer 1.0P-2.0P
