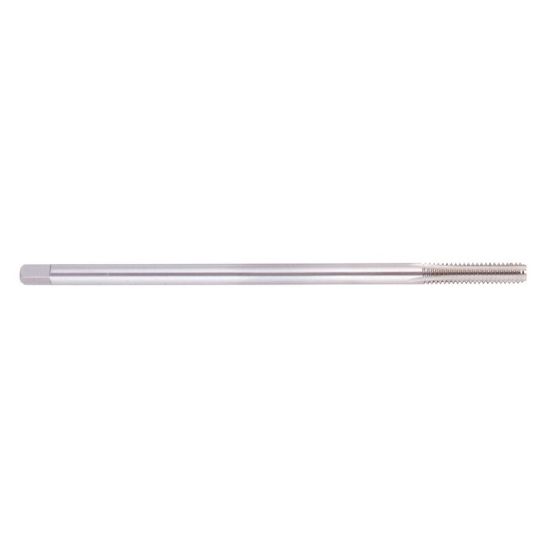

REGAL 015374AS 3/8-24.00TPI Cut Straight Flute Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015374AS
Delivery date: 3-5 days
$55.62
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#2, Material#25, Material#16
Shipping State Illinois
Package Size 1
Sold by Pieces 1
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Additional Key Information 1 Tapping
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Type Bottoming
Machine Side TAP0.286x0.381
Tap Square 0.2860
Tap Style Cut Straight Flute
Overall Len 6.0000 152.40MM
Thread Size 3/8"
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Length Type Long
Tap Chamfer 1.0P-2.0P
Thread Pitch 24.00TPI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
