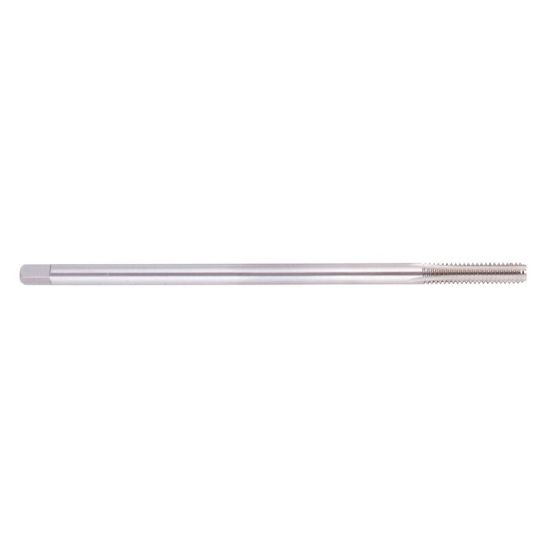

REGAL 015193AS 7/8-9.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015193AS
Delivery date: 3-5 days
$80.86
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Sold by Pieces 1
Material # Material#16, Material#25, Material#2
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Shipping State Illinois
Additional Key Information 1 Tapping
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Chamfer 4.0P-5.0P
Thread Limit H4/GH4
Machine Side TAP0.523x0.697
Shank/Pilot Dia 0.6970 17.70MM
Overall Len 6.0000 152.40MM
Tap Type Plug
Tool Material Steel
Thread Type NC/UNC
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.7594 19.29MM - 0.7882 20.02MM
Length Type Long
Thread Size 7/8"
Thread Pitch 9.00TPI
Dimension Standard ANSI/ANSI
Tap Square 0.5230
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
