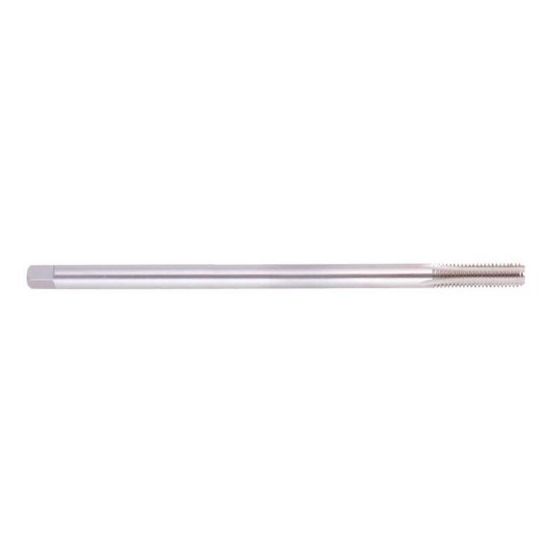

REGAL 015162AS 1-8.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015162AS
Delivery date: 3-5 days
$262.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#2, Material#25
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Additional Key Information 1 Tapping
Performance Rating General Performance
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Tap Square 0.6000
Dimension Standard ANSI/ANSI
Machine Side TAP0.600x0.800
Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Machine Side Connection Type Tap Collet
Overall Len 8.0000 203.20MM
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Shank/Pilot Dia 0.8000 20.32MM
Tap Type Plug
Thread Pitch 8.00TPI
Thread Limit H4/GH4
Thread Size 1"
Thread Type NC/UNC
Flute Direction R - Right
Flutes/Inserts 4
Length Type Long
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
