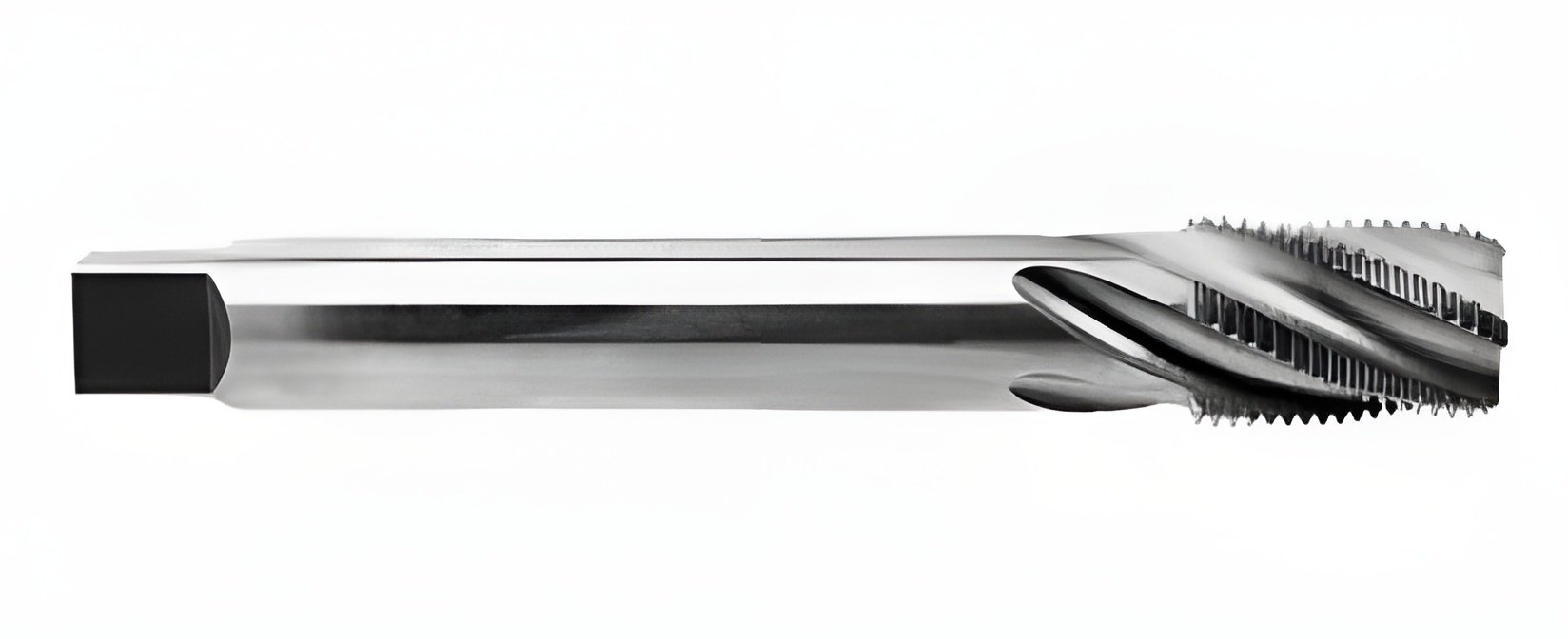

Picture of Regal 010428AS 3/4-10.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSS Uncoated

Regal 010428AS 3/4-10.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSS Uncoated

Part Number: REG010428AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176168
Vendor: Sussex Tool and Supply
$0.00
REGAL 3/4"x10.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSS Uncoated GH7 +0.0035 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 10.00TPI
Thread Type NF/UNF/UNEF
Thread Size 3/4"
Thread Limit GH7 +0.0035
Tap Style Over Sized Roll Form
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6988 17.75MM - 0.7126 18.10MM
Tap Square 0.4420
Tap Chamfer 4.0P-5.0P
Multi Spindle Yes
