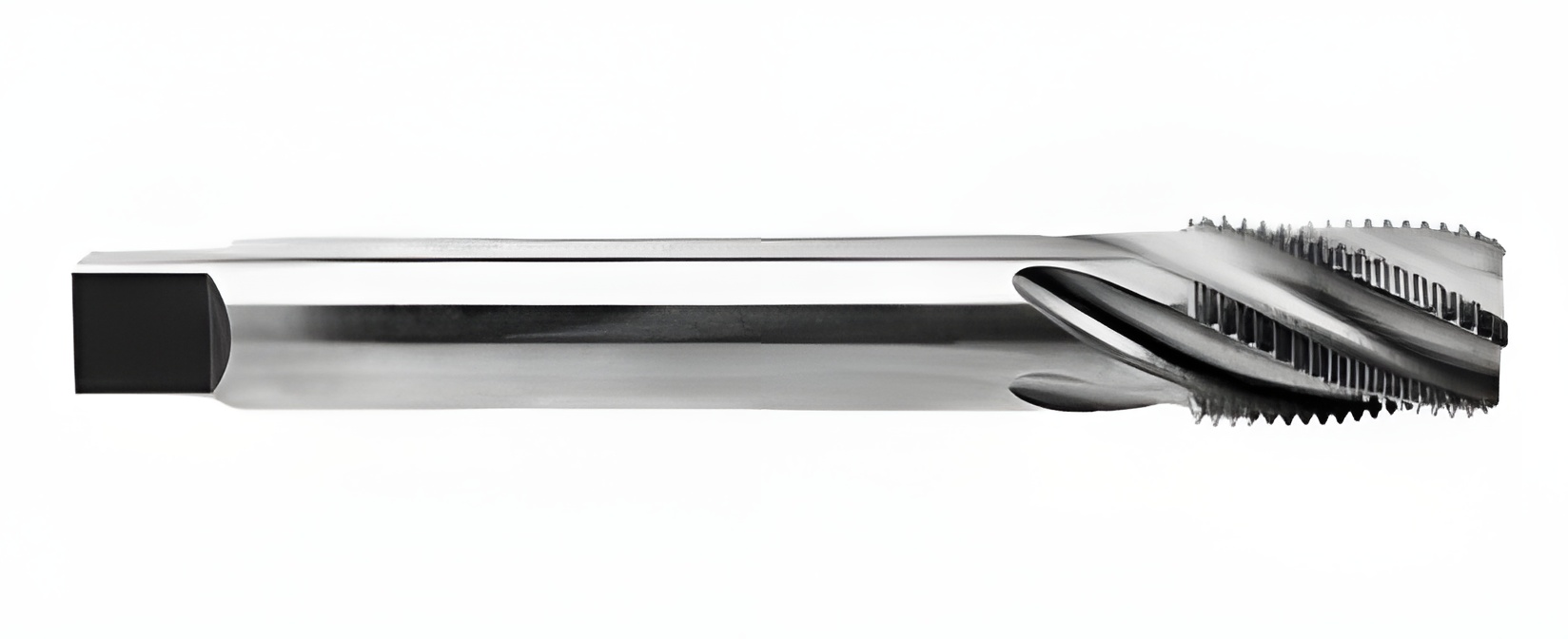

Picture of Regal 010414AS 9/16-12.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSS Uncoated

Regal 010414AS 9/16-12.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSS Uncoated

Part Number: REG010414AS
Looking for alternatives…
Find a drill for this tap 9/16" × 12.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176154
Vendor: Sussex Tool and Supply
$33.29

Description

REGAL 9/16"x12.00TPI Over Sized Roll Form Plug 4.0P-5.0P HSS Uncoated H10 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Over Sized Roll Form
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.5930 91.26MM
Shank/Pilot Dia 0.4290 10.90MM
Thread Pitch 12.00TPI
Thread Size 9/16"
Tap Drill Range 0.5197 13.20MM - 0.5311 13.49MM
Tap Square 0.3220
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H10
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
