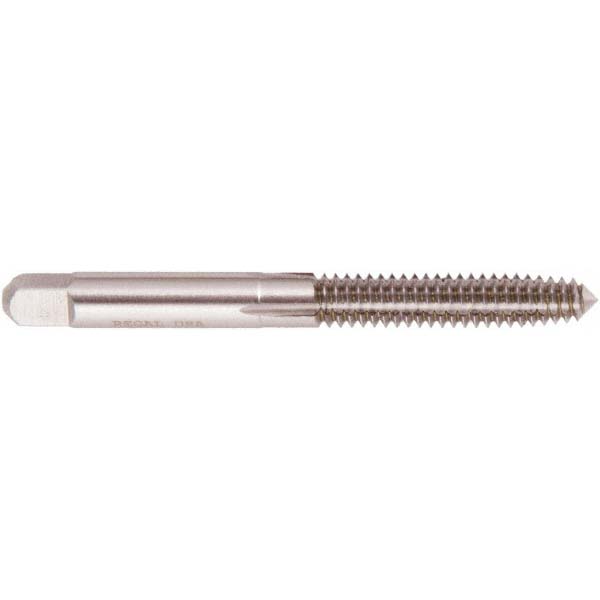

Picture of Regal 010409AS 1/2-20.00TPI Roll Form Bottoming 1.0P-2.0P HSS Uncoated

Regal 010409AS 1/2-20.00TPI Roll Form Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG010409AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176149
Vendor: Sussex Tool and Supply
$0.00
REGAL 1/2"x20.00TPI Roll Form Bottoming 1.0P-2.0P HSS Uncoated H5/GH5 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 3.3750 85.73MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Thread Size 1/2"
Thread Limit H5/GH5
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Tap Square 0.2750
Tap Chamfer 1.0P-2.0P
Multi Spindle Yes
