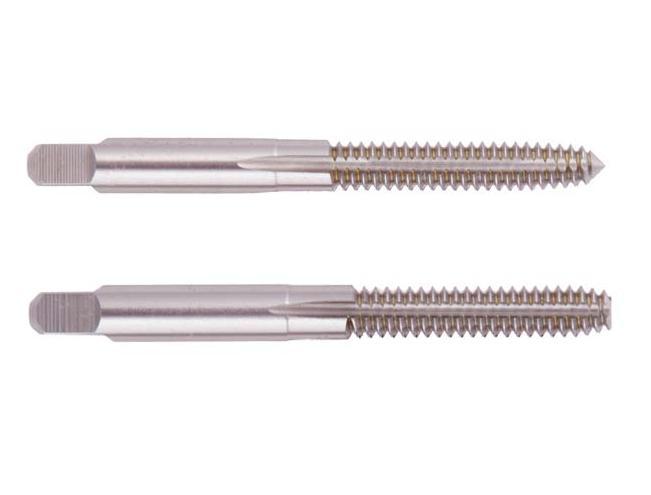

Picture of Regal 010398AS 7/16-14.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Regal 010398AS 7/16-14.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Part Number: REG010398AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176138
Vendor: Sussex Tool and Supply
$0.00
REGAL 7/16"x14.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated H8/GH8 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 3.1560 80.16MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 14.00TPI
Thread Type NC/UNC
Thread Size 7/16"
Thread Limit H8/GH8
Tap Style Roll Form
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4008 10.18MM - 0.4106 10.43MM
Tap Square 0.2420
Tap Chamfer 4.0P-5.0P
Multi Spindle Yes
