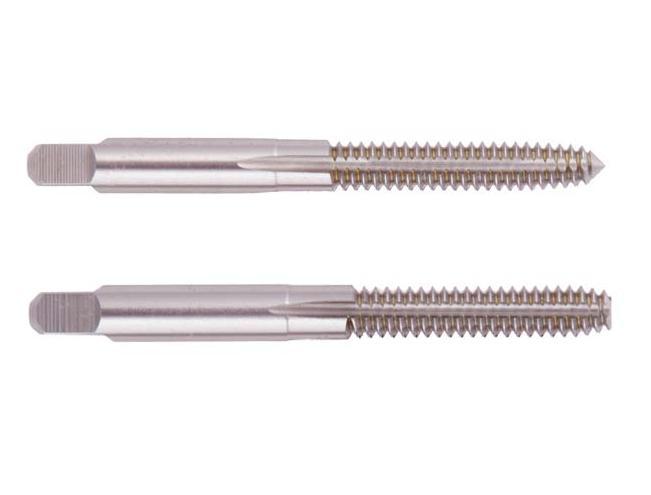

Picture of Regal 010370AS 1/4-20.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Regal 010370AS 1/4-20.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Part Number: REG010370AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176110
Vendor: Sussex Tool and Supply
$0.00
REGAL 1/4"x20.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated H6/GH6 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Size 1/4"
Thread Limit H6/GH6
Tap Style Roll Form
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Multi Spindle Yes
