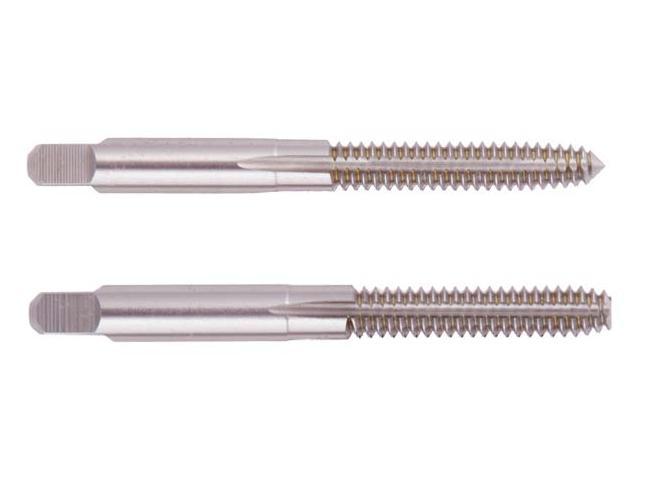

Picture of Regal 010365AS No.12-28.00TPI Roll Form Bottoming 1.0P-2.0P HSS Uncoated

Regal 010365AS No.12-28.00TPI Roll Form Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG010365AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176105
Vendor: Sussex Tool and Supply
$0.00
REGAL No.12x28.00TPI Roll Form Bottoming 1.0P-2.0P HSS Uncoated H4/GH4 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2200 5.59MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 28.00TPI
Thread Type NF/UNF/UNEF
Thread Size No.12
Thread Limit H4/GH4
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2024 5.14MM
Tap Square 0.1650
Tap Chamfer 1.0P-2.0P
Multi Spindle Yes
