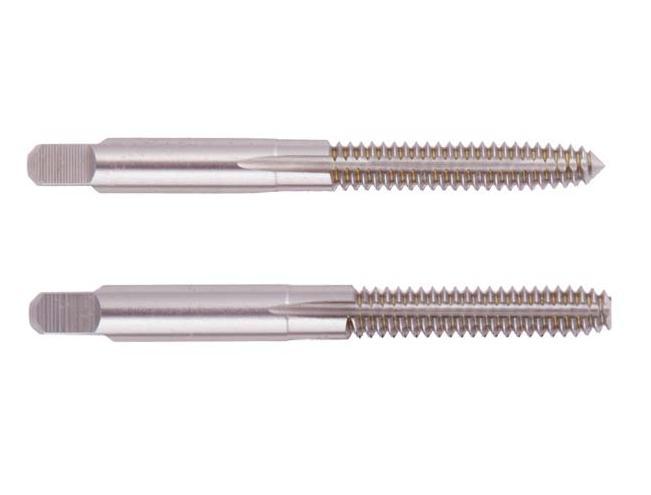

Picture of Regal 010362AS No.12-24.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Regal 010362AS No.12-24.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Part Number: REG010362AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176102
Vendor: Sussex Tool and Supply
$0.00
REGAL No.12x24.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated H6/GH6 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2200 5.59MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Thread Size No.12
Thread Limit H6/GH6
Tap Style Roll Form
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1945 4.94MM - 0.2004 5.09MM
Tap Square 0.1650
Tap Chamfer 4.0P-5.0P
Multi Spindle Yes
