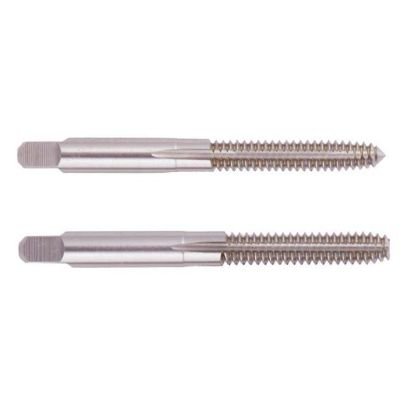

Picture of Regal 010336AS No.6-40.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Regal 010336AS No.6-40.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Part Number: REG010336AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176076
Vendor: Sussex Tool and Supply
$0.00
REGAL No.6x40.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 40.00TPI
Thread Type NF/UNF/UNEF
Thread Size No.6
Thread Limit H3/GH3
Tap Style Roll Form
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1252 3.18MM - 0.1283 3.26MM
Tap Square 0.1100
Tap Chamfer 4.0P-5.0P
Multi Spindle Yes
