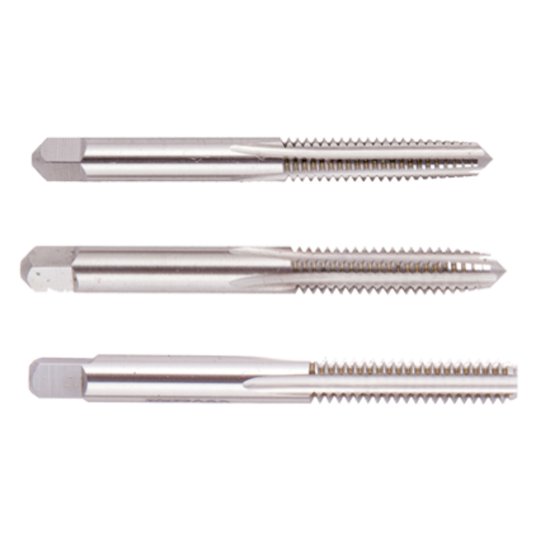

Picture of Regal 008950AS 1-1/2-6.00TPI Set HSS Uncoated

Regal 008950AS 1-1/2-6.00TPI Set HSS Uncoated

Part Number: REG008950AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175399
Vendor: Sussex Tool and Supply
$987.22
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.3268 33.70MM - 1.3701 34.80MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 1.2330 31.32MM
Thread Limit H4/GH4
Cutter Type Taping
Tap Square 0.9250
Length Type STANDARD
Performance Rating General Performance
Tap Style Set
Overall Length 6.3750 161.93MM
Machine Side (Toolpost) TAP0.925x1.233
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State ILLINOIS
Cutting Edge Material HSS
Tool Material Steel
Coolant Thru Non Coolant
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA YES
Thread Size 1-1/2"
Thread Pitch 6.00TPI
