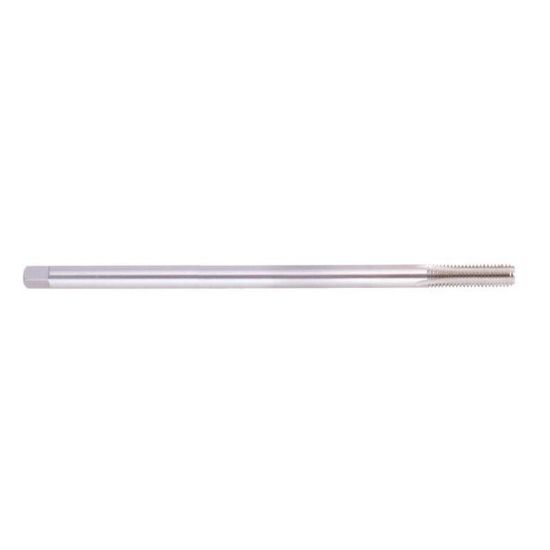

REGAL 008868AS 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008868AS
Delivery date: 3-5 days
$117.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 1 Tapping
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Material # Material#25, Material#16, Material#2
Shipping State Illinois
Uncategorized
Made In USA Yes
Dimensional Specifications
Tap Type Plug
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Machine Side TAP0.286x0.381
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Length Type Long
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Overall Len 10.0000 254.00MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
