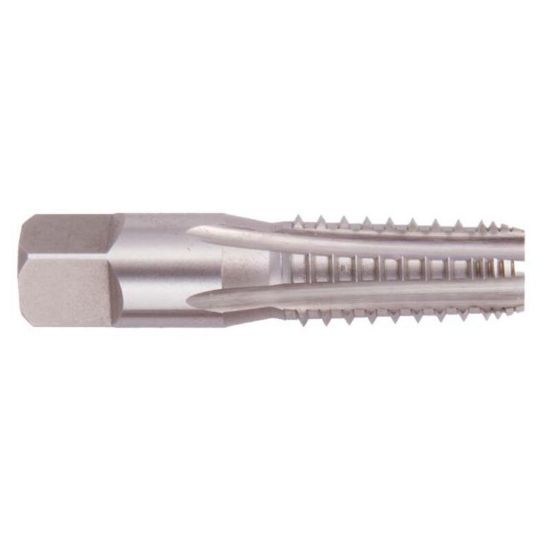

REGAL 008766AS 1/4-18.00TPI Pipe Skip Tooth Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008766AS
Delivery date: 3-5 days
$51.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Tapping
Sold by Pieces 1
Application Skip Tooth Pipe, Pipe Tapping, Tapping
Shipping State Illinois
Package Size 1
Material # Material#15, Material#18, Material#2, Material#8, Material#25
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side TAP0.421x0.562
Overall Len 2.4370 61.90MM
Thread Size 1/4"
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Pipe
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.5620 14.27MM
Thread Pitch 18.00TPI
Thread Limit PIPE
Tool Material Steel
Flutes/Inserts 5
Tap Style Pipe Skip Tooth
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Agricultural YES
Job Shop Yes
Contractor Yes
Mold Yes
