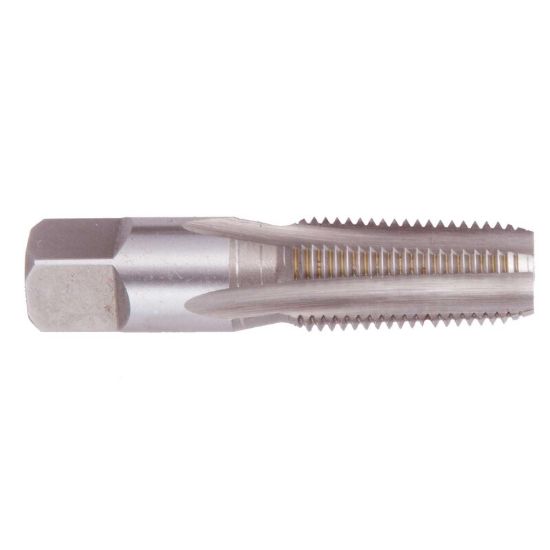

REGAL 008719AS 3/4-14.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008719AS
Delivery date: 3-5 days
$100.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Material # Material#8, Material#15, Material#18, Material#2, Material#25
Package Size 1
Additional Key Information 1 Tapping
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating General Performance
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Limit PIPE
Tap Square 0.6790
Tap Style Pipe Spiral Flute
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Machine Side TAP0.678x0.906
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.9060 23.01MM
Overall Len 3.2500 82.55MM
Drill Range 0.9059 23.01MM
Flute Direction R - Right
Length Type Standard
Thread Pitch 14.00TPI
Tap Type Pipe
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Agricultural YES
Mold Yes
