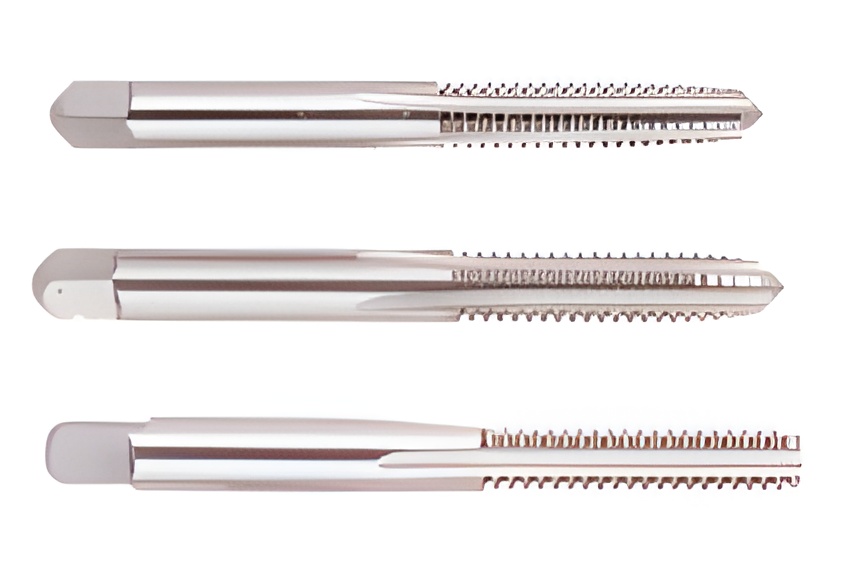

Picture of Regal 008464AS 3/8-24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Regal 008464AS 3/8-24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG008464AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175245
Vendor: Sussex Tool and Supply
$0.00
REGAL 3/8"x24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated H4/GH4 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H4/GH4
Tap Style Hand Tap
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Tap Chamfer 1.0P-2.0P
