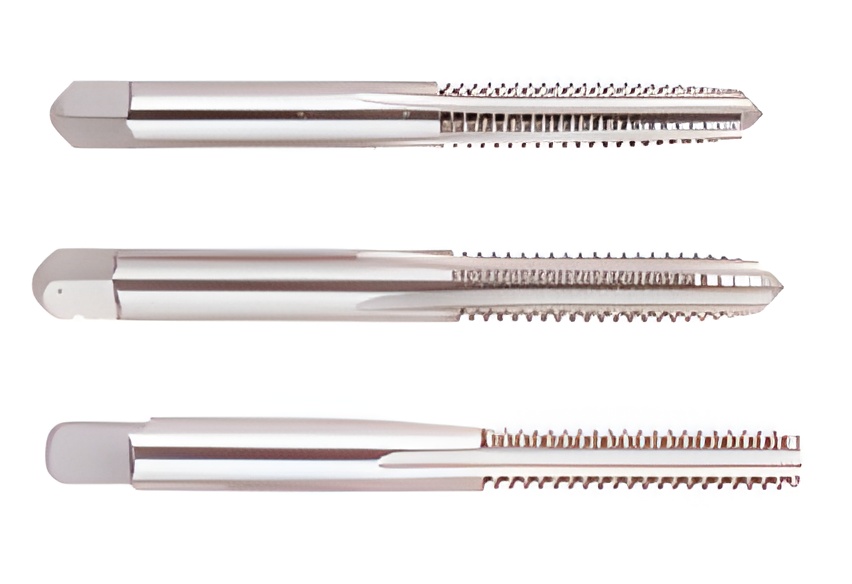

Picture of Regal 008315AS 1/4-20.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Regal 008315AS 1/4-20.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: REG008315AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175134
Vendor: Sussex Tool and Supply
$0.00
REGAL 1/4"x20.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit H3/GH3
Tap Style Hand Tap
Tap Type Taper
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Tap Chamfer 7.0P-10.0P
